Volkswagen Golf Service & Repair Manual: Removing and installing rear outer belt end fitting
| – |

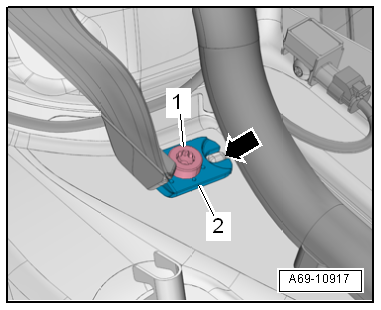

Unscrew bolt -1- on belt end
fitting -2-. |
|
|
|
| |
The anti-rotation tab -arrow-
on the floor panel must be seated in the respective recess on
belt end fitting -2-. |
| – |
Tighten bolt -1- on belt end
fitting -2-. |
| |
→ Chapter „Assembly overview - rear outer three-point seat belt“ |
|
|
|
Removing
–
Remove luggage compartment side trim, estate
→ Chapter.
...
Removing
–
Press belt height adjuster button and move slider of belt
height adjuster to lowest position.
–&nbs ...
