Volkswagen Golf Service & Repair Manual: Removing and installing cover for Top Tether child seat anchor
Special tools and workshop equipment
required |
|
|
|
|
|

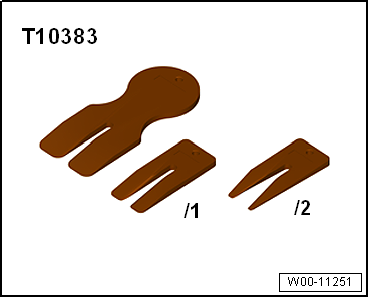

Wedges -T10383 |
– |
Fold down rear seat backrest. |
– |

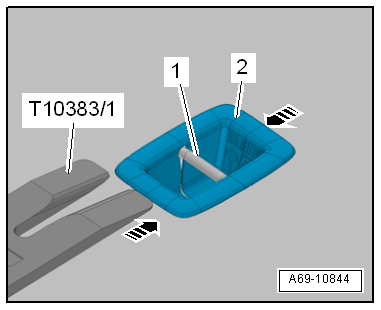

Release locking lugs using wedge -T10383/1--arrows-. |
– |
Lever cover -2- for Top Tether
child seat anchor upwards off rear seat backrest. |
– |
Carefully pull cover off Top Tether child seat anchor
-1- and remove it. |
Installation is carried out in reverse order. |
|
→ Chapter „Assembly overview - rear child seat anchors“ |
|
|
|
Removing
–
Unclip cover -1- from ISOFIX
child seat anchor -arrow- and
remove it.
...
