Volkswagen Golf Service & Repair Manual: Removing and installing bracket for roof grab handle

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Interion equipment / Equipment / Removing and installing bracket for roof grab handle

  Note
Removal and installation is described for the left front bracket for roof grab handle. Follow same instructions for the remaining brackets for roof grab handle as appropriate.
Special tools and workshop equipment required

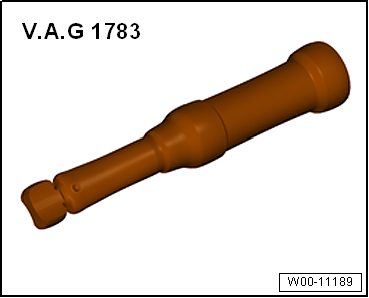

Torque wrench -V.A.G 1783
Torque wrench -V.A.G 1783

Removing
–  Remove moulded headliner → Chapter.
–  If fitted, unclip cable guide -1- from bracket for roof grab handle -3-.
–  Unscrew bolts -2- and remove bracket for roof grab handle -3-.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - roof grab handle“
