Volkswagen Golf Owners Manual: Fuse table

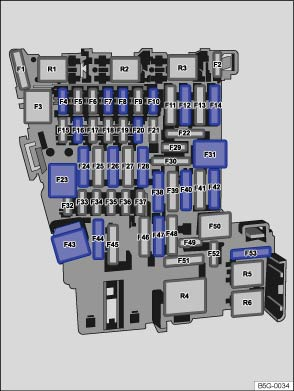

Fig. 230 In the dash panel: fuse layout
First read and observe the introductory information
and safety warningsThe table shows the fuse locations for the items of electrical equipment which are most relevant to the customer. The left column contains the location, the other columns contain the fuse designs, the amp rating and the consumer.
| Fuse location | Fuse design | Amp rating | Electrical consumers |
|---|---|---|---|
| F4 | MINI® | 7.5 | Infotainment system operating system |
| F7 | MINI® | 10 | Air conditioning system or heating and fresh air system operating unit, relay rear window heating, selector mechanism for the automatic gearbox |
| F8 | MINI® | 10 | Light spindle switch, rain sensor, electronic parking brake |
| F10 | MINI® | 10 | Display |
| F12 | ATO® | 20 | Infotainment services |
| F14 | ATO® | 30 | Blower control |
| F16 | MINI® | 7.5 | Telephone |
| F20 | MINI® | 15 | Seat adjuster |
| F23 | JCASE® | 40 | Exterior lights |
| F24 | ATO® | 30 | Electric panorama sliding/tilting roof |
| F26 | ATO® | 30 | Seat heating |
| F28 | ATO® | 20 | Left trailer controller unit |
| F31 | JCASE® | 40 | Exterior lights |
| F38 | ATO® | 20 | Right trailer controller unit |
| F40 | ATO® | 20 | Cigarette lighter, electrical socket |
| F42 | ATO® | 40 | Windscreen washer, headlight washer system |
| F43 | JCASE® | 30 | Interior lighting |
| F44 | ATO® | 15 | Trailer controller unit |
| F47 | ATO® | 15 | Rear wiper |
| F53 | ATO® | 30 | Rear window heating |
Depending on the version and specification of your vehicle, the fuse numbers and positions may differ to those given in the table. If necessary ask your Volkswagen dealership for the exact fuse layout.
Electric windows and the electrically adjustable seats can be secured via circuit breakers. They switch on automatically a few seconds after the strain, e.g. frozen windows has been relieved.
Fuses in the vehicle
Fig. 228 Fuse box cover in the dash panel:
A: left-hand drive vehicle, to the left-hand side of the steering wheel B: right-hand
drive vehicle, on the driver side
Fig. 229 In the engine compartm ...
Fuse tables for fuses in the engine compartment
Fig. 231 Engine compartment: fuse layout
First read and observe the introductory information
and safety warningsThe table shows the fuse locations for the items of electrical
equipment which ar ...
