Volkswagen Golf Owners Manual: Display and indicator lamps

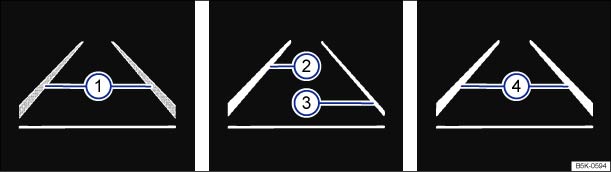

Fig. 176 In the instrument cluster display: lane departure warning system displays.
First read and observe the introductory information
and safety warnings Displays
Display fields :
Lane marking detected. System not regulating.
Lane marking detected. System is regulating.
No lane marking detected. System not
regulating.
Lane marking detected. System is regulating.
Adaptive lane guidance active.
Indicator lamps
| Lit up | Possible cause | Solution |
|---|---|---|
 |
Lane Assist is switched on but not active. | The system cannot clearly detect the lane. Refer to . |
 |
Lane Assist is switched on and active. | – |
Several warning and indicator lamps will light up briefly as a functional check when the ignition is switched on. They will switch off after a few seconds.
Introduction
This chapter contains information on the following subjects:
→ Display and indicator lamps
→ Function
→ Switch off the lane departure warning system in the following ...
Function
Fig. 177 Windscreen: lane departure warning
system camera window
First read and observe the introductory information
and safety warnings Using a camera in the windscreen, the lane departure
...
