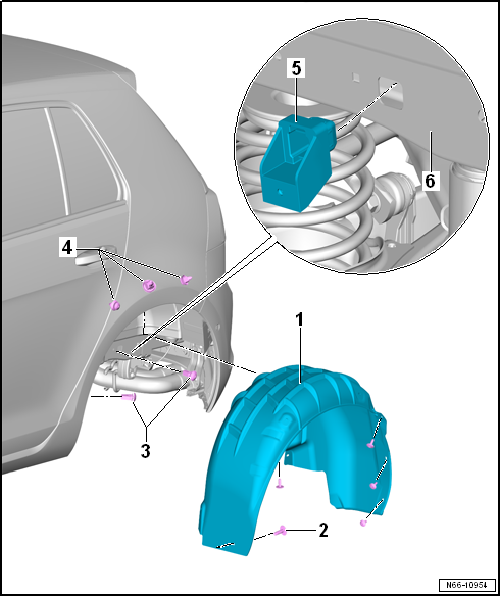

Assembly overview - rear wheel housing liner

1 -	Rear wheel housing liner

Material PP/EPDM
Removing and installing → Chapter

2 -

Bolt

Qty. 10 on each side
2.0 Nm

3 -	Expanding nuts

Qty. 2 on each side

4 -	Expanding nut

Qty. 3 on each side
Gas-tight

DANGER!

Check gas-tight spreader nuts for damage and renew if necessary.

The spreader nuts seal the interior against exhaust gases and have to be renewed without fail in the event of damage.

5 -

Adapter

On right side only, not for petrol engines
Mounting prior to installing the rear wheel housing liner -1

6 -	Rear longitudinal members

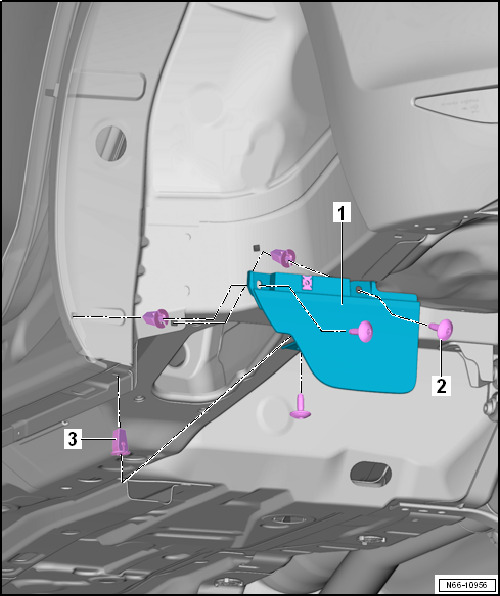

Assembly overview - sill panel cover

Note

Only the left side is shown. The right side is similar.

Assembly overview - rear wheel housing liner

1 -	Side member cover

Removing
Release rear wheel housing liner → Chapter
Unscrew bolts -2- and remove sill panel cover downwards
Installing

Note

Check spreader nut for damage and renew if necessary.

Position and bolt sill panel cover

2 -

Bolt

Qty. 3
2.0 Nm

3 -	Expanding nut

Qty. 3
