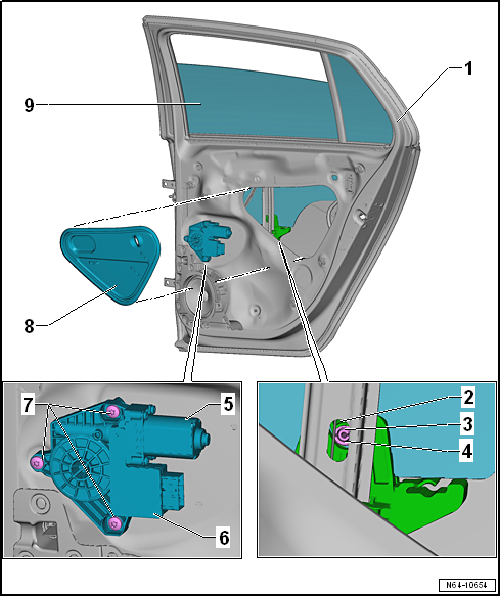

Assembly overview - rear door window

1 -

Rear door

2 -	Window regulator

Removing and installing → Chapter

3 -	Spreader pin

Together with spreader plug for securing door window.

4 -	Spreader plug

Together with spreader pin for securing door window.

5 -	Window regulator motor

Removing and installing → Chapter

6 -	Door control unit

7 -

Bolt

Qty. 3
3 Nm

8 -	Inner door cover

Removing and installing → Chapter

9 -	Door window

Removing and installing → Chapter

Assembly overview - front door window

Note Only the left side is shown. The right side is similar. 1 - Front door 2 - Door window Removing and installi ...

Assembly overview - fixed rear door window

1 - Fixed door window Removing and installing → Chapter 2 - Seal Part of window 3 - Bolt ...
