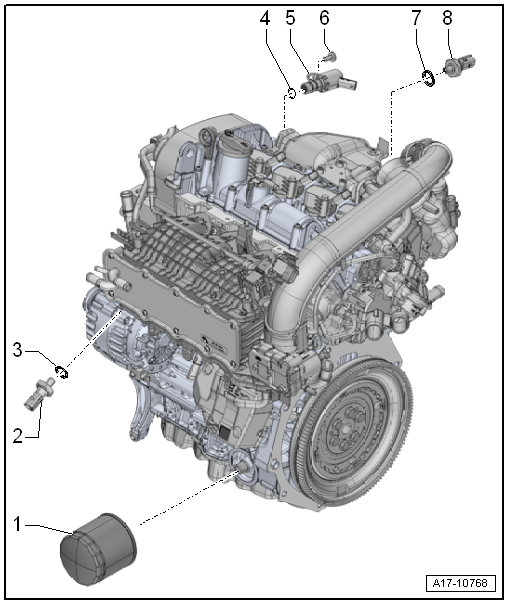

Assembly overview - oil filter/oil pressure switch

1 -	Oil filter

Remove and install with oil filter tool -3417-.

Before installing, lightly coat seal with clean engine oil.

20 Nm

See note → Anchor

2 -	Oil pressure switch for reduced oil pressure -F378-

Switch pressure 0.3…0.6 bar

Checking → Chapter

If removed, oil pressure switch must be renewed

Removing and installing → Chapter

20 Nm

3 -

Seal

The seal cannot be replaced individually

If removed, oil pressure switch must be renewed

4 -

O-ring

Renew

5 -	Oil pressure control valve -N428-

Removing and installing → Chapter

6 -

Bolt

8 Nm

7 -

Seal

The seal cannot be replaced individually

If removed, oil pressure switch must be renewed

8 -	Oil pressure switch -F1-

Switch pressure 2.15…2.95 bar

Checking → Chapter

If removed, oil pressure switch must be renewed

Removing and installing → Chapter

20 Nm

Oil filter, oil pressure switch

...

Removing and installing oil pressure switch -F1-
