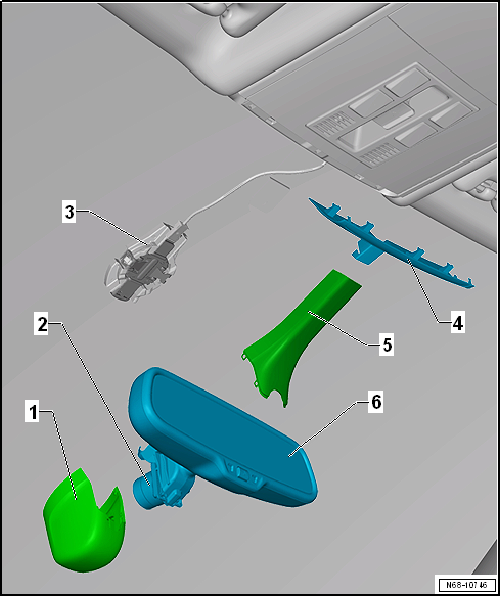

Assembly overview - manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

1 -	Front cover

For mirror base

2 -	Main beam assist control unit -J844-

Equipment version
Not sold separately

3 -	Retaining plate

For interior mirror
Bonded to windscreen.
Removing and installing → Chapter

4 -

Trim

Clipped into retaining frame for moulded headliner
To remove, first remove rear cover

5 -	Rear cover

For mirror base

6 -	Interior mirror

Allocation → Electronic Parts Catalogue
Removing and installing → Chapter

Assembly overview - manually operated anti-dazzle interior mirror, without rain and light sensor -G397- and front camera for driver assist systems -R242-

1 - Retaining plate Retaining plate for mirror base Glued to windscreen Removing and installing → Chapter 2 - Interior mir ...

Assembly overview - automatic anti-dazzle interior mirror, with rain and light sensor -G397- and front camera for driver assist systems -R242-

1 - Front cover For mirror base 2 - Retaining plate For interior mirror Bonded to windscreen 3 - Rear cov ...
