Volkswagen Golf Service & Repair Manual: Assembly overview - air duct and air distribution in passenger compartment

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Air duct / Assembly overview - air duct and air distribution in passenger compartment

  Note
The illustration shows a left-hand drive vehicle.

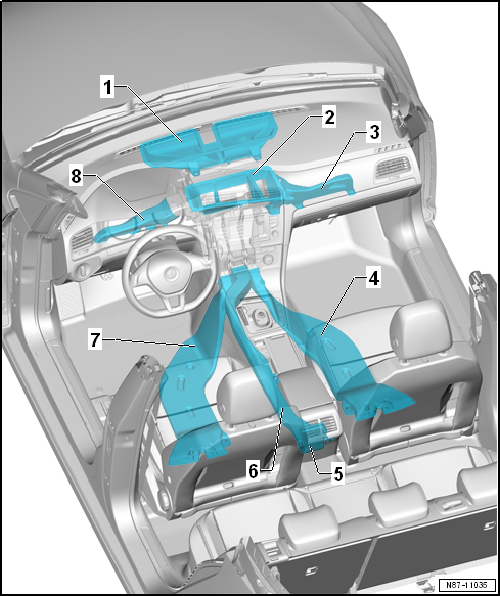

Assembly overview - air duct and air distribution in passenger compartment

1 -  Air duct for defroster vent
Removing and installing → Chapter.
2 -  Air duct for centre dash panel vent
Removing and installing → Chapter.
3 -  Footwell vent on front passenger side
Removing and installing → Chapter.
4 -  Removing and installing rear footwell vent
Removing and installing → Chapter.
5 -  Air duct for rear of centre console
Installed depending on vehicle equipment. On vehicles without air duct for rear vent in centre console a respective cover is fitted on heater unit instead.
Removing and installing → Chapter.
6 -  Air duct for rear vent in centre console
Installed depending on vehicle equipment. On vehicles without air duct for rear vent in centre console a respective cover is fitted on heater unit instead.
Removing and installing → Chapter.
7 -  Removing and installing rear footwell vent
Removing and installing → Chapter.
8 -  Footwell vent on driver side
Removing and installing → Chapter.
Air duct
...

Removing and installing fresh air intake, LHD vehicles
Removing –  Remove plenum chamber cover → General body repairs, exterior; Rep. gr.50. –  ...
