Volkswagen Golf Service & Repair Manual: Vacuum generation with manual vacuum pump -VAS 6213-

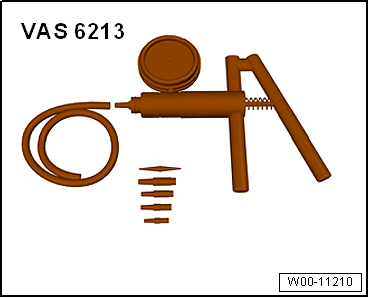

In certain cases, vacuum can be generated with the manual vacuum pump -VAS 6213- instead of with the engine or the vacuum pump.
–  To do this, connect manual vacuum pump -VAS 6213- to vacuum hose from connection -B- on brake servo vacuum gauge -VAS 6721-.
–  Open cut-off valve -B-.
–  Generate vacuum with hand vacuum pump -VAS 6213- until between 600 and 950 mbar is shown on brake servo vacuum gauge -VAS 6721-.
–  Then, carry out the corresponding checks.


Vacuum generation with manual vacuum pump -VAS 6213-

Checking for leaks
