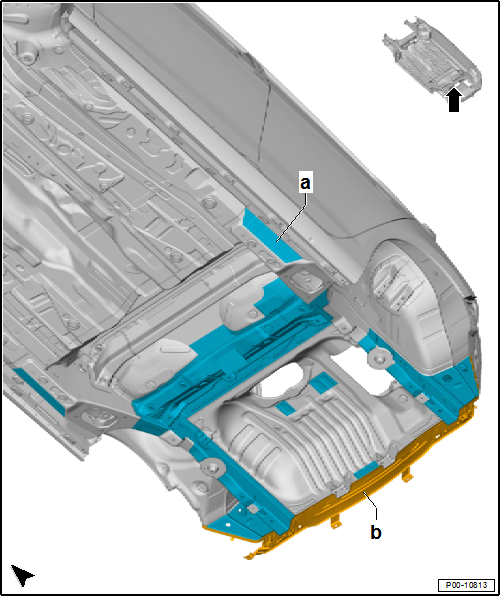

Undercoating, rear body of hybrid vehicles

Undercoating, additional protected areas on hybrid vehicles

a -  Undercoating
Coat thickness: 0.3 mm
b -  Undercoating
Coat thickness: 0.5 mm
Undercoating, additional protected areas on CNG-powered vehicles
  Note Undercoating (stone-chipping protection) applied during repair work must be identical in appearance and thickness to the original undercoating. Wate ...
