Volkswagen Golf Service & Repair Manual: Undercoated areas, body overview indicating differing coat thicknesses

Volkswagen Golf Service & Repair Manual / Vechile- specific paint information / Undercoating / Undercoated areas, body overview indicating differing coat thicknesses

  Note
Undercoating (stone-chipping protection) applied during repair work must be identical in appearance and thickness to the original undercoating.
Water drainage holes must remain clear.
All threaded studs and welded nuts with metric threads as well as all other studs and contact surfaces for assembly must be functional following the application of the undercoating.
Undercoating overview

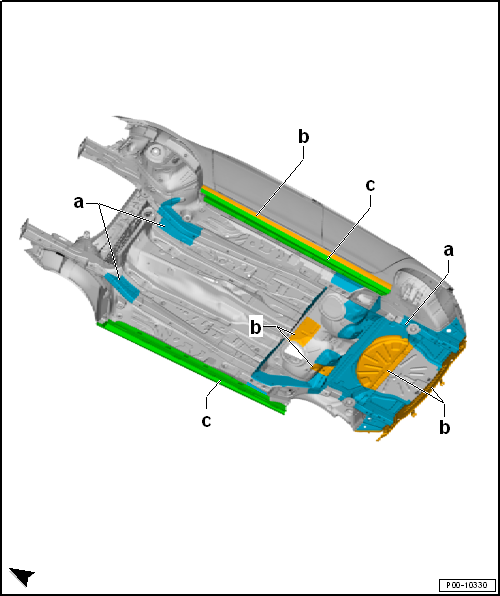

Undercoated areas, body overview indicating differing coat thicknesses

a -  Undercoating
Coat thickness: 0.3 mm
b -  Undercoating
Coat thickness: 0.5 mm
c -  Undercoating
Coat thickness: 1.2 mm
