Volkswagen Golf Service & Repair Manual: Types of protective tube on uniform Lambda probes

  Note
In addition to identifying by way of the part number, the protective tube can also be used as a means of identification.

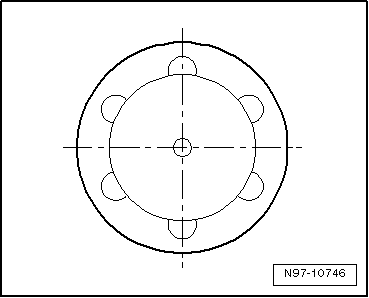

Type D1, 6 openings at 3.5 mm each

Only used on 4-pin LSF Lambda probes.

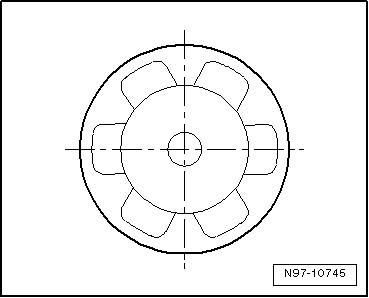

Type D2, 6 openings at 2 mm each


Types of protective tube on uniform Lambda probes

Only used on 4-pin LSF Lambda probes and 6-pin LSU Lambda probes.

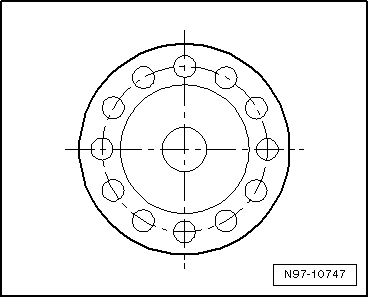

Type D4, 12 openings at 1.4 mm each


Types of protective tube on uniform Lambda probes

Only used on 4-pin LSF Lambda probes and 6-pin LSU Lambda probes.


Types of protective tube on uniform Lambda probes

Renewing LSU Lambda probe (6-pin)
