Volkswagen Golf Service & Repair Manual: Tools and materials commercially available


  Caution
Non-authorised tools or materials (e.g. leak inhibitor additive) may cause damage or adversely influence the system.
Only tools and materials approved by the manufacturer may be used.
The use of non-approved tools or materials will render the warranty void.

Overview page
Fin comb → Fig.
Charging hoses 5/8"-18 UNF with valve opener → Fig.
Connector piece for pressure bottles for refrigerant and sealing ring with quick-release coupling or threaded connector 5/8"-18 UNF → Fig.
Valve caps 5/8" -18 UNF → Fig.
Manifold gauge with pressure limiter for nitrogen → Fig.
Quick-release coupling adapter for service connections, 2 included in items supplied with air conditioner service station → Fig.
Open ring spanners of widths matching those of the threaded connections on the refrigerant pipes. not illustrated
Valve opener for charging hoses not illustrated
Connection nipple for tapered seal 5/8"-18 UNF not illustrated
Compressed air gun with rubber nozzle not illustrated
Hand shut-off valve 5/8" - 18 UNF not illustrated
Recycling bottle for refrigerant R134a not illustrated
Digital thermometer not illustrated
Protective gloves not illustrated
Protective goggles not illustrated
Refrigerant R134a with pressure bottle (contents as required) not illustrated
Nitrogen in pressure bottle not illustrated
Strap wrench (oil filter) as counterhold for poly V-belt pulley not illustrated

Tools to be made locally

Overview page
Charging hose with connector to the workshop's compressed air system → Fig.

Tools and materials available from distribution centre or importer
  Caution
Non-authorised tools or materials (e.g. leak inhibitor additive) may cause damage or adversely influence the system.
Only tools and materials approved by the manufacturer may be used.
The use of non-approved tools or materials will render the warranty void.

Air conditioning service station -VAS 6007A- (and further service stations currently available)
→ Workshop equipment
The procedures for testing, extracting (recycling), evacuating and charging should be carried out in accordance with the respective user's manual.
The installed filter and dryer must be renewed at the latest at the end of the period of use specified in the operating instructions and every time that the station is emptied (keep replacement filter on hand. they can be ordered from the manufacturer of the device, see user's manual.
Air conditioner service stations or purging devices approved by VW but not shown here may also be used.
→ Workshop equipment
  Note
This air conditioner service station incorporates the following common individual devices: charging cylinder, manifold gauge, vacuum pump, shut-off valves and charging hoses.
This air conditioner service station includes one of each type of quick-release coupling (for high-pressure and low-pressure side service connections).


Tools and materials commercially available

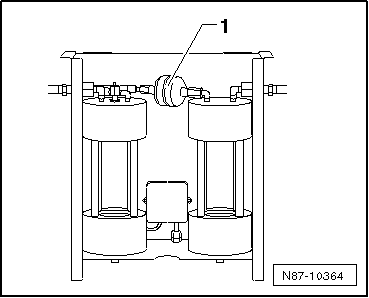

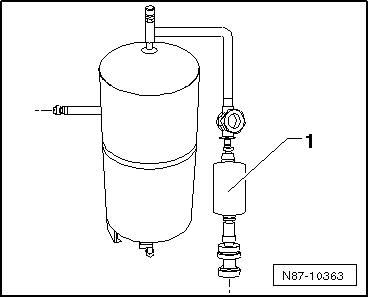

Purging device for refrigerant circuits -VAS 6337/1- from “Behr” or later model.
  Note
With filter -1- and two large cylindrical sight glasses
The filter in the purging device for refrigerant circuits should be changed after about 2 purging cycles (depending on the level of contamination from the purged refrigerant circuits). If a heavily contaminated refrigerant circuit is purged (the refrigerant oil from the refrigerant circuit is black and viscous or there are large amounts of shavings in the refrigerant circuit) renew filter after purging refrigerant circuit.


Tools and materials commercially available

Purging device for refrigerant circuits -VAS 6336/1- from “Waeco” or later model.
  Note
With filter -1- and one sight glass
The filter in the purging device for refrigerant circuits should be changed after about 2 purging cycles (depending on the level of contamination from the purged refrigerant circuits). If a heavily contaminated refrigerant circuit is purged (the refrigerant oil from the refrigerant circuit is black and viscous or there are large amounts of shavings in the refrigerant circuit) renew filter after purging refrigerant circuit.


Tools and materials commercially available

Leak detector -V.A.G 1796-


Tools and materials commercially available

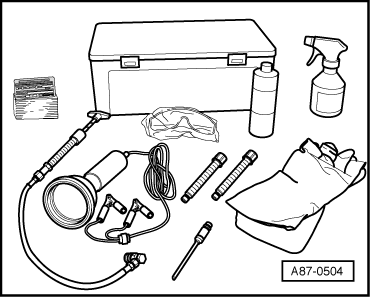

Leak detecting system -VAS 6196-


Tools and materials commercially available

Leak detecting system VAS 6201 or later model


Tools and materials commercially available

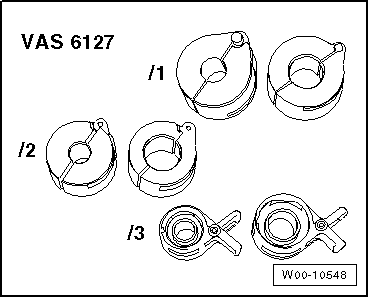

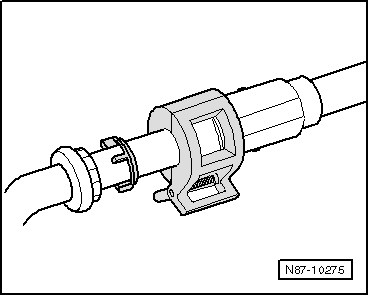

Release tool -VAS 6127- case comprising release tool -VAS 6127/1-release tool -VAS 6127/2- and release tool -VAS 6127/3-


Tools and materials commercially available

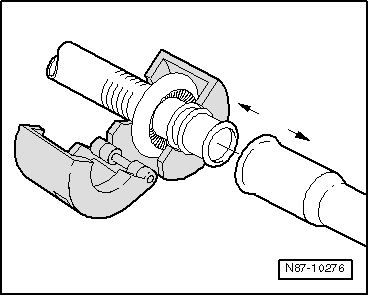

Release tool -VAS 6127/1-release tool -VAS 6127/2-
Blue 1/2 inch
Black 5/8 inch
Red 3/8 inch
White 3/4 inch


Tools and materials commercially available

Release tool -VAS 6127/3-
Green NW 8 for high-pressure line
Black NW 13 for low-pressure line


Tools and materials commercially available

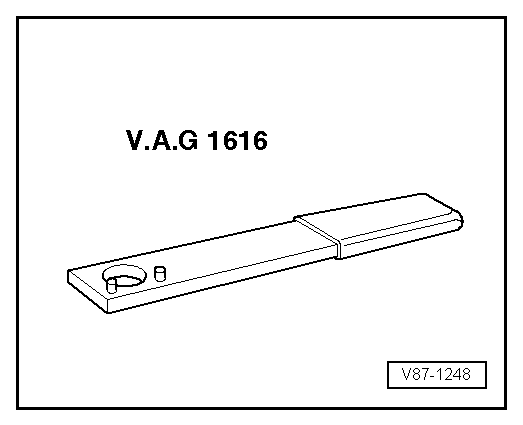

Counterhold -V.A.G 1616- for clutch pulley (for “Sanden” air conditioner compressors)


Tools and materials commercially available

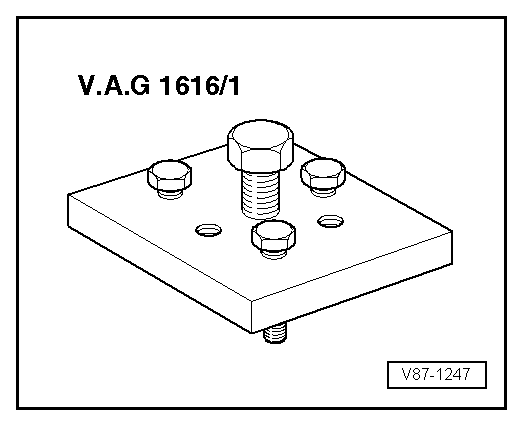

Puller -V.A.G 1616/1- for clutch pulley (for “Sanden” air conditioner compressors)


Tools and materials commercially available

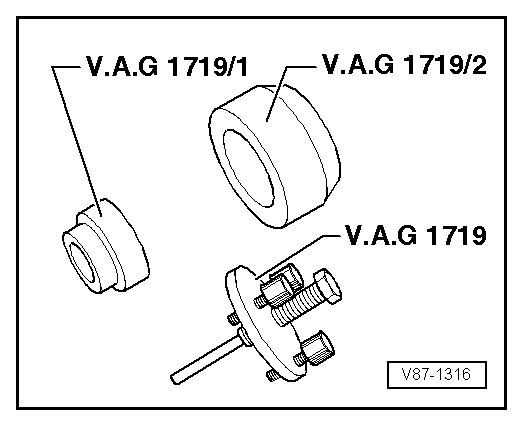

Magnetic clutch puller -V.A.G 1719- (for “Zexel” air conditioner compressors)


Tools and materials commercially available

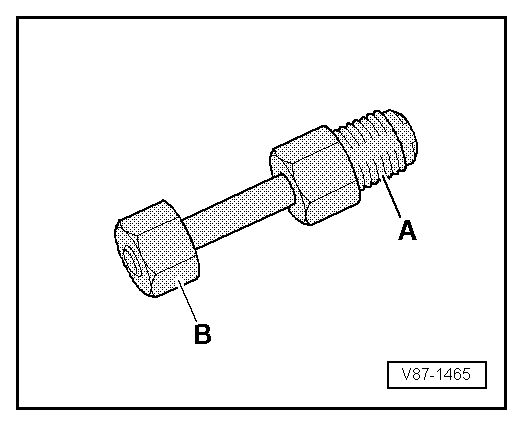

Adapter set for refrigerant circuit -V.A.G 1785/1-10-
Adapter to clean refrigerant circuit (flushing with refrigerant R134a) → Chapter or blowing through with compressed air or nitrogen → Chapter
A -  5/8"-18 UNF thread for conical surface seal
B -  Cap nuts (for connection with O-ring) with thread
M 18x1.5 V.A.G 1785/1
M 20x1.5 V.A.G 1785/2
M 24x1.5 V.A.G 1785/3
M 28x1.5 V.A.G 1785/4

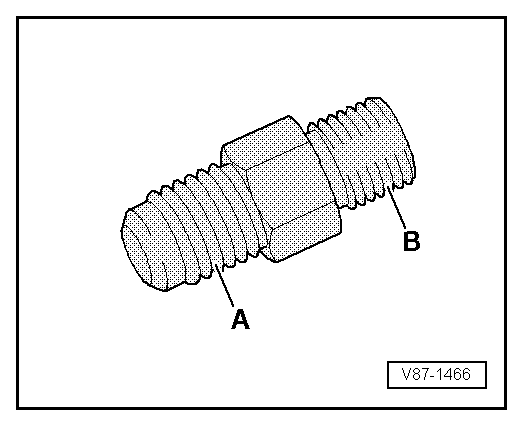

A -  5/8"-18 UNF thread for conical surface seal
B -  Threaded union for O-ring
M 18x1.5 V.A.G 1785/5
M 20x1.5 V.A.G 1785/6
M 24x1.5 V.A.G 1785/7


Tools and materials commercially available

M 28x1.5 V.A.G 1785/8


Tools and materials commercially available

Valve adapters

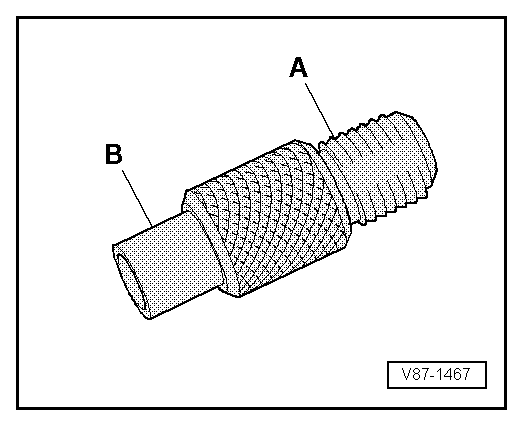

A -  5/8"-18 UNF thread for conical surface seal
B -  Internal thread with valve opener M 10x1.25 V.A.G 1785/9 (for connections with valves on the high-pressure side) M 12x1.5 V.A.G 1785/10 (for connections on the low-pressure side)
  Note
There is a Schrader valve screwed into connection -A-.
A valve opener must be fitted into the charging hose connection.


Tools and materials commercially available

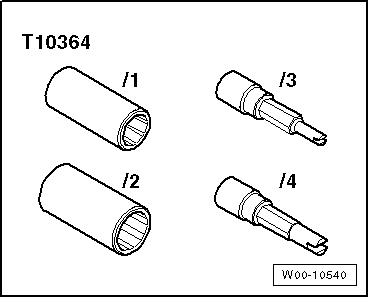

Socket insert -T10364- for valves of service connections on HP/LP side of refrigerant circuit


Tools and materials commercially available
