Volkswagen Golf Service & Repair Manual: Structure of factory finish, clear coat

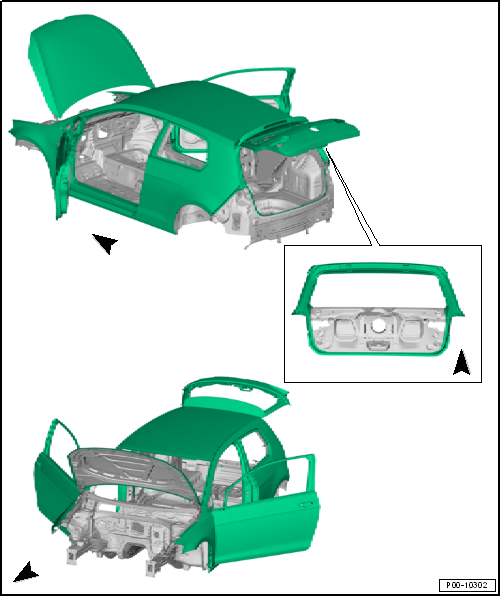

Clear coat, 2-door

Structure of factory finish, clear coat

 -  Clear coat
Only the coloured areas of the body receive a clear coat.

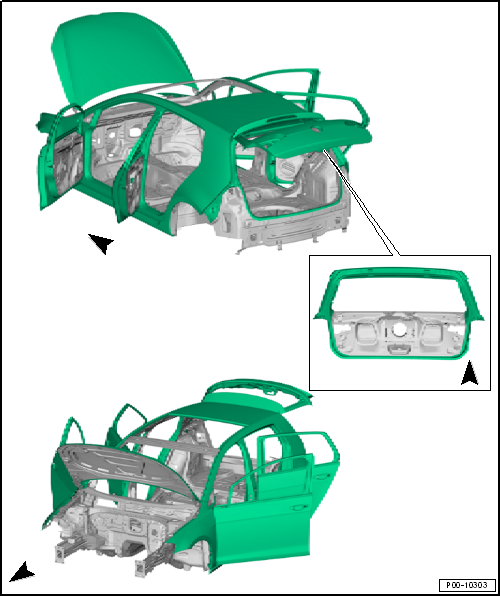

Clear coat, 4-door

Structure of factory finish, clear coat

 -  Clear coat
Only the coloured areas of the body receive a clear coat.
Structure of factory finish, base coat
Base coat, 2-door  -  Base coat Only the coloured areas of the body receive a base coat.         ...

Areas exposed to stone chipping
Body areas exposed to stone chipping   Note The marked areas are exposed to stone chipping. When sanding these areas, note thicknesses of the paint structure ...
