Volkswagen Golf Service & Repair Manual: Stone chip guard -AKR 311 KD1 10

Designation:
Stone chip guard -AKR 311 KD1 10-, black
Issue 02.2014
Product description
Stone chip guard -AKR 311 KD1 10-, black may be thinned with water.
Properties:
High elasticity
May be overpainted with all top coats
Is suitable for protection of areas of cars and trucks which are in danger of stone chipping, such as front bumpers and door sills.
Technical data sheet
Substrate
Suitable substrates:
Well-sanded factory paint or old paint (including thermoplastic paint)
Surfaces treated with primer or surfacer
  Caution
Stone chip guard -AKR 311 KD1 10- must not be applied to PVB (acid-curing) surfaces.

Substrate pre-treatment:
–  Thoroughly clean with silicone remover -LVM 020 000 A5- or slow-drying silicone remover -LVM 020 100 A5-.


Stone chip guard -AKR 311 KD1 10

–  Then lightly sand.


Stone chip guard -AKR 311 KD1 10

–  Before recoating, use a suitable cleaning agent to ensure a clean surface free of residues.


Stone chip guard -AKR 311 KD1 10

Application
Spray equipment:

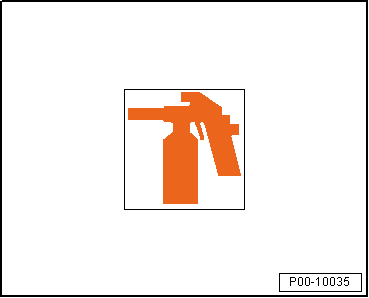

–  Underbody protection spray gun (UBS gun) with thread for disposable cans.


Stone chip guard -AKR 311 KD1 10

–  If a smoother surface is desired, stone chip guard -AKR 311 KD1 10- applied with a gravity-feed gun if it is first appropriately thinned.
Thinner:
–  May be thinned with demineralised water -LVW 010 000 A5-


Stone chip guard -AKR 311 KD1 10

Method of application: “high-pressure spray”.


Stone chip guard -AKR 311 KD1 10

–  Application viscosity 4 mm, +20 °C, DIN 53211
–  Adjust spray pressure following manufacturer's instructions to 3-4 bar.
  Note
Do not thin for high-pressure spraying. The viscosity as supplied is correct for application.


Stone chip guard -AKR 311 KD1 10

Method of application: “spray”.


Stone chip guard -AKR 311 KD1 10

Application viscosity 4 mm, gravity-feed spray gun “compliant”:
Depending on addition of demineralised water -LVW 010 000 A5-
  Stone chip guard -AKR 311 KD1 10
Add 10% thinner at a material temperature of +20 °C
–  If thinner is added, use measuring stick to mix.


Stone chip guard -AKR 311 KD1 10

–  Adjust spray nozzle following manufacturer's instructions to 1.5-2.0 mm for “compliancy”.
–  Adjust spray pressure following manufacturer's instructions to 2.0-2.5 bar for “compliancy”.


Stone chip guard -AKR 311 KD1 10

–  Apply 2-3 spray coats.
–  The specified thickness for the dry film is 150-300 µm.


Stone chip guard -AKR 311 KD1 10

Drying
Air drying at +20 °C room temperature, up to 150 µm for 2 to 2.5 hours and up to 300 µm overnight.


Stone chip guard -AKR 311 KD1 10

Final flash-off time with force drying is at least 35-40 minutes.


Stone chip guard -AKR 311 KD1 10

Force drying at +60 °C material temperature, 150-300 µm 30 minutes.


Stone chip guard -AKR 311 KD1 10

Recoating
Recoat with:
Waterborne base coat and 2-pack HS clear coat
2-pack HS top coat


Stone chip guard -AKR 311 KD1 10

Personal protective equipment:
Adhere to the safety data sheet.
Wear personal protective equipment during application.
Data


Stone chip guard -AKR 311 KD1 10

Viscosity as supplied Thixotropic
Flash point: non-flammable
VOC content: 2004/42/IIB(e)(840)130 The EU limit value for this product (product category IIB.e) in ready-to-spray form is max. 840 g/l of volatile organic compounds. The VOC content of this product in ready-to-spray form is max. 130 g/l.

Storage
The guaranteed shelf life is 48 months from date of production. May be used until the date stated on the label at latest if stored in sealed original containers at +20 °C.


Stone chip guard -AKR 311 KD1 10

Storage conditions
The prescribed storage temperature is +20 °C. (Do not store at temperatures below +5 °C.)


Stone chip guard -AKR 311 KD1 10
