Volkswagen Golf Owners Manual: Side view

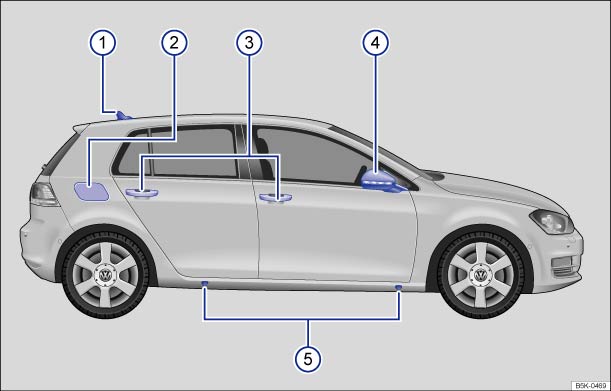

Fig. 1 Overview of the driver side

Key for  :

  1. Roof aerial  
  2. Tank flap  
  3. Exterior door release lever  
  4. Exterior mirrors  
    • Additional turn signal  
    • Surround lighting  
  5. Jacking points  
Exterior views
...

Front view
Fig. 2 Overview of the front of the vehicle Key for  : Sensor or camera window on the mirror base for: Rain sensor   Main beam assist (Light Assist)   Lane depa ...
