Volkswagen Golf Service & Repair Manual: Separating cover and padding for rear bench seat

Special tools and workshop equipment required



Upholstery clip pliers -V.A.G 1634
Upholstery clip pliers -V.A.G 1634

Removing
–  Remove cover and padding for rear bench seat → Chapter.

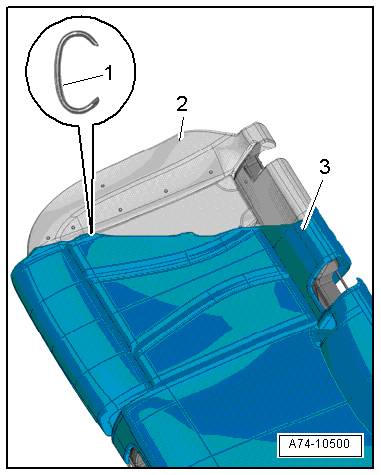

–  Pull seat cover -3- as far as possible off seat padding -2-.
–  Cut through upholstery clips -1- using pliers.
–  Separate seat cover from seat padding.
Installing
Install in reverse order, but note the following:
–  After installation, check that there are no creases in the seat cover.
