Volkswagen Golf Service & Repair Manual: Run-flat tyres, PAX, checking

When checking a tyre, look out especially for the following criteria:

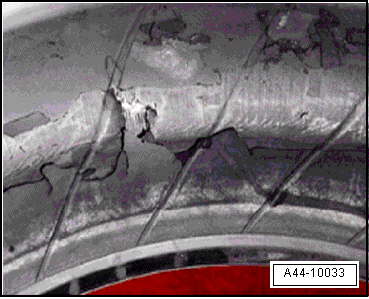

Surface erosion or ripples on the inner side (inflation pressure was too low or not sufficient for the load)

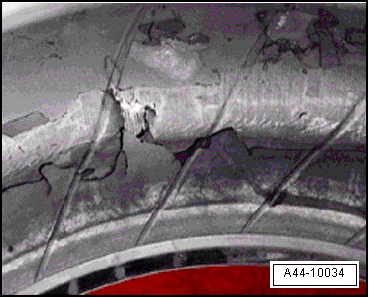

Loose rubber or loose radial threads


Run-flat tyres, PAX, checking

Separated or deformed bead core


Run-flat tyres, PAX, checking

Damage to tyre bead with cord ply visible


Run-flat tyres, PAX, checking

Repairing run-flat tyres, PAX
General information It is not always necessary to renew a tyre after it has lost pressure and then been run in an uninflated condition. ...
