Note

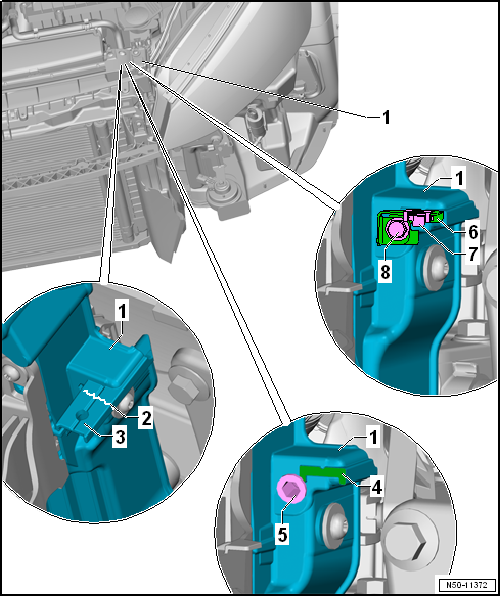

Line -2- indicates the position where the tab might break off.

Left headlight mounting

–	Remove front bumper cover → Chapter.

–	Remove headlights → Electrical system; Rep. gr.94.

–	Make a straight cut to cut or saw headlight mounting -4- off lock carrier -1-.

–	Fit threaded rivet -5-.

–	Fit new retaining bracket -6- with speed nut -7-.

–	Tighten bolt -8-.

Specified torques

Component	Specified torque
Bolt	5 Nm
