Volkswagen Golf Service & Repair Manual: Renewing input shaft seal

Special tools and workshop equipment required

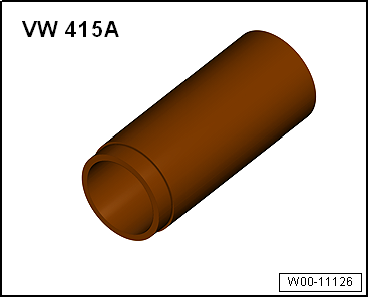

Tube -VW 415 A-


Renewing input shaft seal

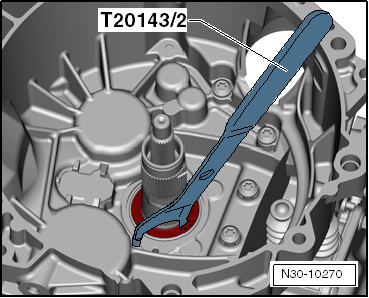

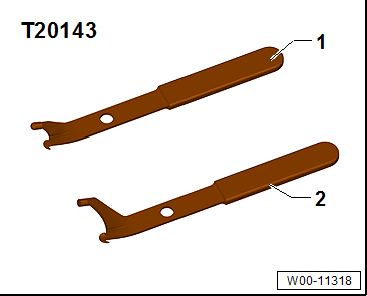

Extractor tool -T20143/2-
Requirement:
Dual clutch removed → Chapter.
Clutch engagement mechanism removed → Chapter.
  Caution
Risk of damage to clutch and other components!
Renew dual clutch if it is oily.
  Note


Renewing input shaft seal

There are 2 oil seals in gearbox at clutch end. Both oil seals can be renewed without dismantling the gearbox. If only the oil seals are being renewed, it is not necessary to adjust the clutch engagement mechanism.


Renewing input shaft seal

–  Lever out outer oil seal.


Renewing input shaft seal


  Caution
The clutch can be damaged.
Only drive in oil seal until it is flush, in order to avoid closing off oil drilling located behind it. Otherwise, bearing can no longer be supplied with enough oil.
–  Drive in new oil seal with a plastic hammer so it is flush with clutch housing, as shown in illustration.
Shoulder of pipe section -VW 415 A- points upwards -arrow-.
–  Install clutch engagement mechanism → Chapter.
–  Install dual clutch → Chapter.
→ Chapter „Renewing oil seal for inner input shaft“


Renewing input shaft seal

Installing dual clutch
Special tools and workshop equipment required     Support device -T10323-   ...

Renewing oil seal for inner input shaft
Special tools and workshop equipment required     Oil seal extractor -T10420-   ...
