Volkswagen Golf Service & Repair Manual: Removing automatic distance control unit from and installing on adapter frame, variant 2

Volkswagen Golf Service & Repair Manual / Electrical system / Starter- current supply- CC / Adaptive cruise control / Removing automatic distance control unit from and installing on adapter frame, variant 2

Removing
–  Remove adaptive cruise control unit -J428- → Chapter.

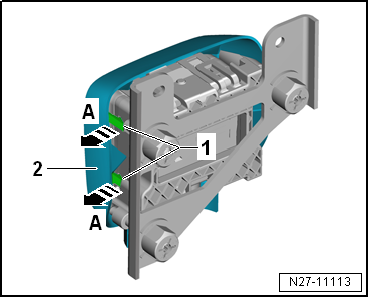

–  Detach fasteners -1- on both sides in direction of arrow -A-.
–  Remove trim for radar sensor -2-.


Removing automatic distance control unit from and installing on adapter frame, variant 2

–  Release locking mechanisms -1- in direction of arrow -A-.
–  Swing out automatic distance control unit -J428--3- in direction of arrow -B-.
–  Remove automatic distance control unit -J428--3- from adapter frame -2-.
Installing
Install in the reverse order of removal, observing the following:
–  Calibrate adaptive cruise control → Chapter.


Removing automatic distance control unit from and installing on adapter frame, variant 2
