Volkswagen Golf Service & Repair Manual: Removing and installing window slot inner seal

  Note
Removal and installation are only described for the left window slot inner seal. Removal and installation of the right window slot outer seal are similar.


Removing and installing window slot inner seal

Removing
–  Remove rear door trim → General body repairs, interior; Rep. gr.70.

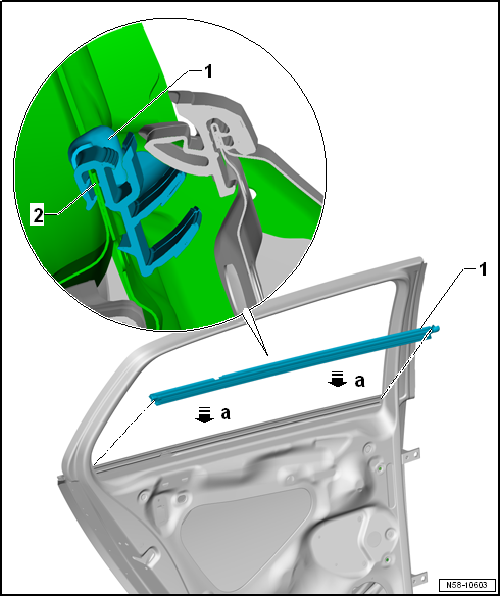

–  Lift off window slot inner seal -1- uniformly from flange -2- without bending or distorting it.
Installing
–  Centre window slot inner seal -1--arrows a- and press it uniformly and by hand at front onto door flange -2-.
Removing and installing window slot outer seal
  Note   The core of the window slot outer seal is a metal insert.   If it is bent o ...
