Volkswagen Golf Service & Repair Manual: Removing and installing underbody covers – petrol/diesel

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Exterior equipment / Noise insulation / Removing and installing underbody covers – petrol/diesel

Note

The removal and installation procedures may have to be modified slightly depending on engine fitted.

Removing and installing underbody covers – petrol/diesel

Removing

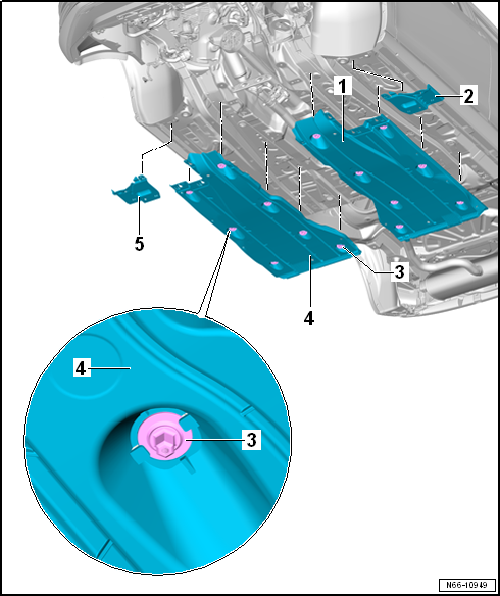

–  Remove centre underbody panels → Chapter.
–  Release retaining tab and pull out front cover -2- or -5- in direction of travel backwards off catches.
–  Unscrew nuts -3-.
–  Remove underbody panel -1- or -4-.
Installing
Install in the reverse order of removal observing the following:
Specified torque
Nuts → Item
Assembly overview - underbody covers, hybrid vehicles
1 -  Front cover Left and right 2 -  Underbody cover Left and right Removing and installing → Chapter 3&nbs ...

Removing and installing front underbody cover – e-Golf
Removing –  Remove bolts -2-. –  Unscrew nuts -3-. –  Remove underbody cover -1-. Installing ...
