Volkswagen Golf Service & Repair Manual: Removing and installing trim for operating and display unit

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Interion equipment / Centre console / Removing and installing trim for operating and display unit

Removing

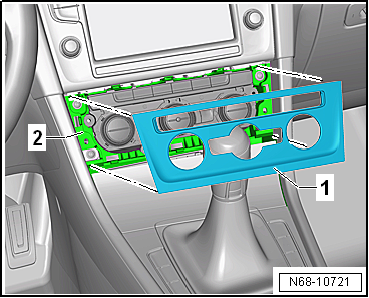

–  Starting at bottom, unclip trim for operating and display unit -1- from operating and display unit -2- and remove it.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.


Removing and installing trim for operating and display unit

Removing and installing centre console trim in footwell
  Note Removal and installation is described for the centre console trim in footwell on driver side. Follow same instructions for the front passenger sid ...

Removing and installing centre console front storage compartment
Removing –  Remove trim for operating and display unit → Chapter. –  Unclip front storage ...
