Volkswagen Golf Service & Repair Manual: Removing and installing support for luggage compartment floor, saloon

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Trim, noise insulation / Luggage compartment trims / Removing and installing support for luggage compartment floor, saloon

Note

Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate.

Special tools and workshop equipment required

Torque wrench -V.A.G 1783

Removing

–	Fold down rear seat backrests.

–	Remove luggage compartment floor towards rear.

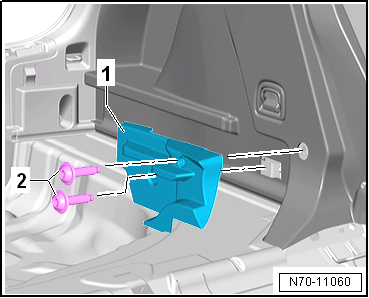

–	Remove bolts -2-.

–	Remove luggage compartment floor covering bracket -1-.

Installing

Installation is carried out in reverse order.

Specified torques

→ Chapter „Assembly overview - luggage compartment floor“

Torque wrench -V.A.G 1783
