Volkswagen Golf Service & Repair Manual: Removing and installing support for luggage compartment floor, estate

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Trim, noise insulation / Luggage compartment trims / Removing and installing support for luggage compartment floor, estate

Special tools and workshop equipment required

Removing
–  Fold down rear seat backrests.
–  Turn fasteners on left and right of luggage compartment floor by 90° to release them, and remove luggage compartment floor towards rear from vehicle.
–  Remove support for luggage compartment floor upwards → Item.

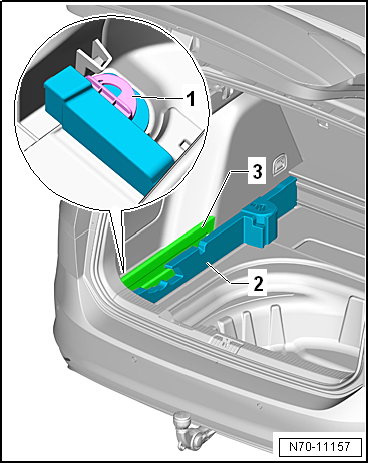

–  Pull side wall -3- on left and right upwards out of luggage compartment side trim, and remove it.

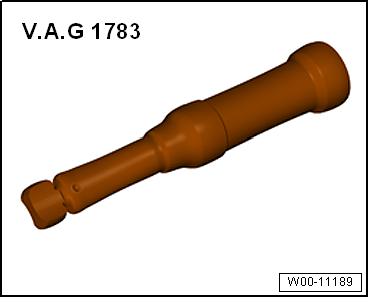

Torque wrench -V.A.G 1783
Torque wrench -V.A.G 1783

–  Turn push-on fastener -1- on left and right anti-clockwise by 90°, and remove it upwards.
–  Remove luggage compartment floor lining -2- upwards on left and right.


Removing and installing support for luggage compartment floor, estate

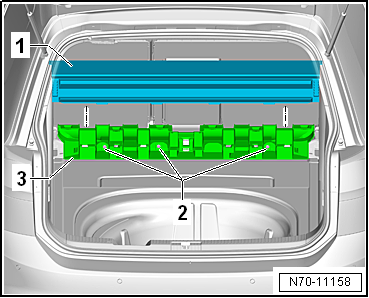

–  Unclip centre luggage compartment floor lining -1- upwards from carrier -3-.
–  Remove bolts -2-.
–  Remove carrier -3- for centre luggage compartment floor lining -1- towards rear.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - luggage compartment floor“
