Volkswagen Golf Service & Repair Manual: Removing and installing spray jet, GTI, GTD and »R«

  Note
The spray jet is installed in the high-level brake light.
Removing:
–  Remove high-level brake light → Chapter.

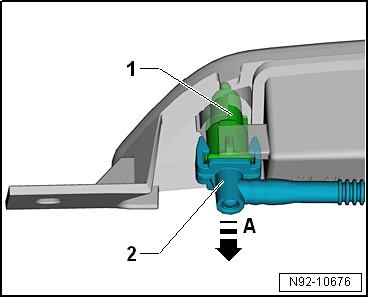

–  Pull spray jet -1- together with hose -2- in direction of arrow -A- out of high-level brake light.
Installing
Install in the reverse order of removal, observing the following:
  Note
Make sure to push the spray jet into the mounting as far as stop.


Removing and installing spray jet, GTI, GTD and »R«

Adjusting spray jet
  Note
Adjustable spray jets are only installed on Golf models.
–  Adjusting rear window washer system spray jets → Booklet36.1.
