  Note
If the remote control receiver for auxiliary coolant heater -R149- is renewed, the remote control receiver for auxiliary coolant heater -R149- needs to be adapted to the auxiliary and supplementary heater using the vehicle diagnostic tester in “Guided fault finding” mode.
Special tools and workshop equipment required

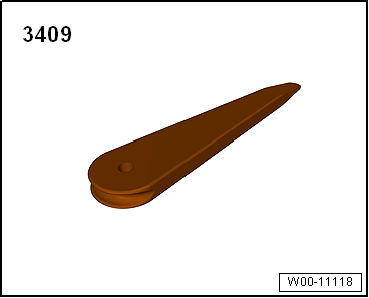

Removal wedge -3409-
Removing
–  Remove luggage compartment side trim on right → General body repairs, interior; Rep. gr.70.


Removing and installing remote control receiver for auxiliary coolant heater -R149-, Golf Variant

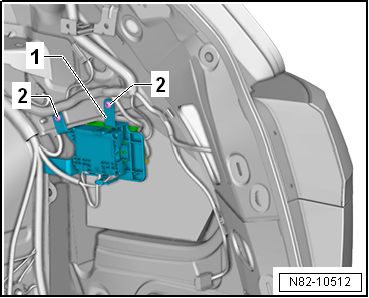

–  Remove bolts -2- from bracket -1- for Telestart.
–  Remove bracket for Telestart far enough that remote control receiver for auxiliary coolant heater -R149- is accessible.


Removing and installing remote control receiver for auxiliary coolant heater -R149-, Golf Variant

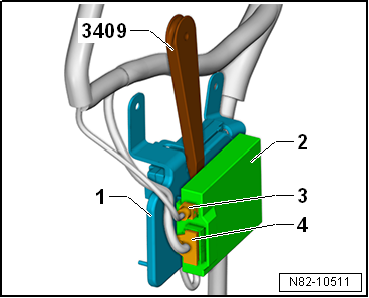

–  Separate connectors -3- and -4-.
–  Press securing tab aside using removal wedge -3409-.
–  Pull remote control receiver for auxiliary coolant heater -R149--2- upwards off bracket for Telestart.
Installing
Install in reverse order.
  Note
If the remote control receiver for auxiliary coolant heater -R149- is renewed, the remote control receiver for auxiliary coolant heater -R149- needs to be adapted to the auxiliary and supplementary heater using the vehicle diagnostic tester in “Guided fault finding” mode.
Specified torque


Removing and installing remote control receiver for auxiliary coolant heater -R149-, Golf Variant

Component Specified torque
Bolts on bracket for Telestart 2 Nm

Install luggage compartment side trim on right → General body repairs, interior; Rep. gr.70.
