Volkswagen Golf Service & Repair Manual: Removing and installing relay and fuse carrier behind dash panel, LHD vehicles

Volkswagen Golf Service & Repair Manual / Electrical system / Wiring / Relay carriers, fuse holders, electronics boxes / Removing and installing relay and fuse carrier behind dash panel, LHD vehicles

Removing
–  With ignition switched off, disconnect earth cable from battery → Chapter.
–  Remove dash panel → General body repairs, interior; Rep. gr.70.

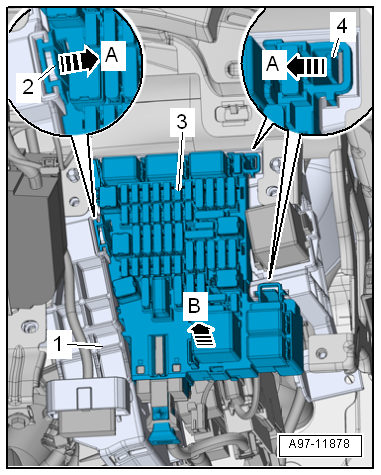

–  Release retaining tabs -2 and 4--arrows A-.
–  Pull fuse holder C -3- towards rear -arrow B- out of bracket -1-.
–  Disconnect electrical wiring.
  Note
The exact assignment should be gleaned from the latest current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
Take photographs of the assignment, if necessary.
Installing
Installation is carried out in the reverse sequence.


Removing and installing relay and fuse carrier behind dash panel, LHD vehicles

Removing and installing fuse holder A -SA-
Removing –  Remove fuse holder B → Chapter. –  Take securing bar -4- out of fuse ho ...

Removing and installing relay and fuse carrier behind dash panel, RHD vehicles
Removing –  With ignition switched off, disconnect earth cable from battery → Chapter. –  ...
