Volkswagen Golf Service & Repair Manual: Removing and installing rear underbody cover – petrol/diesel

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Exterior equipment / Noise insulation / Removing and installing rear underbody cover – petrol/diesel

  Note
The removal and installation procedures may have to be modified slightly depending on engine fitted.

Removing and installing rear underbody cover – petrol/diesel

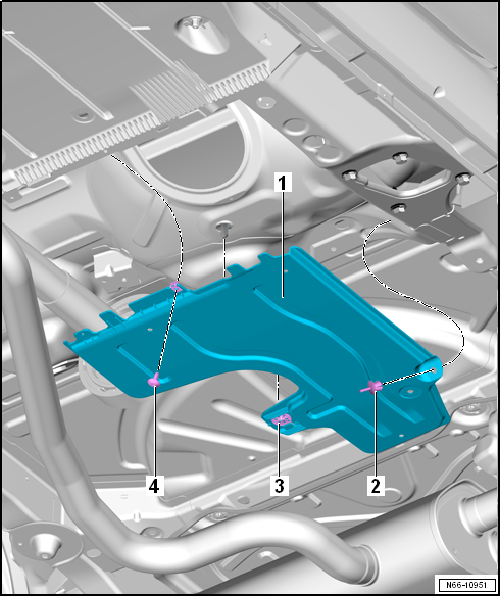

–  Loosen lock washer -3-.
–  Unclip spreader rivet -2- and remove bolt -4-.
–  Remove rear underbody panel -1-.
Installing
Install in the reverse order of removal observing the following:
Specified torques
  Bolt → Item
Removing and installing centre underbody cover – e-Golf
Removing –  Remove bolts -2-. –  Unscrew nuts -3-. –  Remove underbody cover -1-. Installing ...

Removing and installing rear underbody cover – e-Golf
Removing –  Remove bolts -2-. –  Unscrew nuts -3-. –  Remove underbody cover -1-. Installing ...
