Volkswagen Golf Service & Repair Manual: Removing and installing rear left vehicle level sender -G76-, torsion beam axle

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Self- levelling air spring system / Vehicle level senders / Removing and installing rear left vehicle level sender -G76-, torsion beam axle

Special tools and workshop equipment required

Torque wrench -V.A.G 1410-
Removing

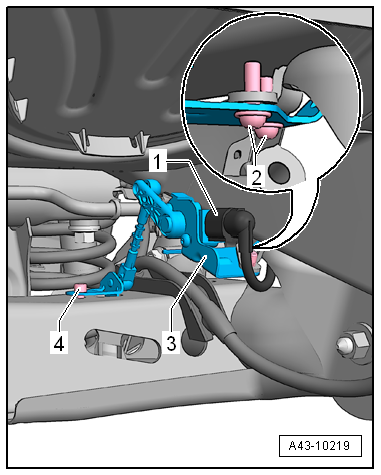

Removing and installing rear left vehicle level sender -G76-, torsion beam axle

–  Disconnect connector -1-.
–  Remove bolts -2- and -4-.
–  Remove rear left vehicle level sender -G76--3-.
Installing
Install in reverse order of removal, observing the following:
  Note
The lever of the rear left vehicle level sender -G76- must face towards rear of vehicle.
Perform basic setting of wheel damper electronics → Vehicle diagnostic tester.
Carry out basic setting of headlights → Electrical system; Rep. gr.94.
Specified torques
→ Chapter „Assembly overview - rear vehicle level sender, torsion beam axle“
