Volkswagen Golf Service & Repair Manual: Removing and installing rear left vehicle level sender -G76-, multi-link suspension, four-wheel drive

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Self- levelling air spring system / Vehicle level senders / Removing and installing rear left vehicle level sender -G76-, multi-link suspension, four-wheel drive

Special tools and workshop equipment required

Torque wrench -V.A.G 1410-
Removing


Removing and installing rear left vehicle level sender -G76-, multi-link suspension, four-wheel drive

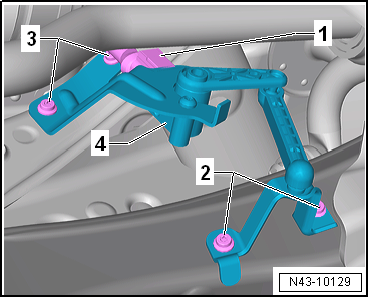

–  Disconnect connector -1-.
–  Remove bolts -2- and -3-.
–  Take out rear left vehicle level sender -G76--4-.
Installing
Install in reverse order of removal, observing the following:
Lever on vehicle level sender must face towards outside of vehicle.
Perform basic setting of wheel damper electronics → Vehicle diagnostic tester.
Carry out basic setting of headlights → Electrical system; Rep. gr.94.
Specified torques
→ Chapter „Assembly overview - rear vehicle level senders, multi-link suspension, front-wheel drive“
