Volkswagen Golf Service & Repair Manual: Removing and installing rear centre three-point seat belt

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Pasanger protection / Seat belts / Removing and installing rear centre three-point seat belt

Removing
–  Remove backrest cover with backrest padding from rear seat backrest → Chapter.

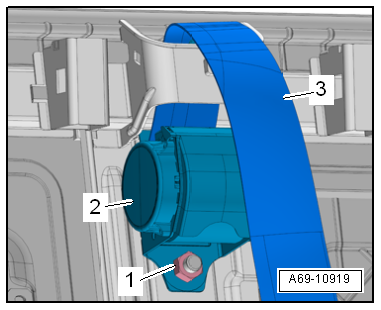

–  Unscrew nut -1-.
–  Detach three-point seat belt -2- and remove it.
–  Guide out belt webbing -3-.
Installing
–  If parts of the belt system are removed because of an accident, the belt system securing bolts must be renewed.
–  Fit three-point seat belt ensuring that anti-rotation tab engages in mounting and tighten nut.
Further installation is performed in reverse order of removal
Specified torques
  → Chapter „Assembly overview - rear centre three-point seat belt“
