Volkswagen Golf Service & Repair Manual: Removing and installing rear bumper aerial for entry and start system -R136-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Entry and start authorisation system / Removing and installing rear bumper aerial for entry and start system -R136-

Removing
–  Remove bumper cover → General body repairs, exterior; Rep. gr.63.

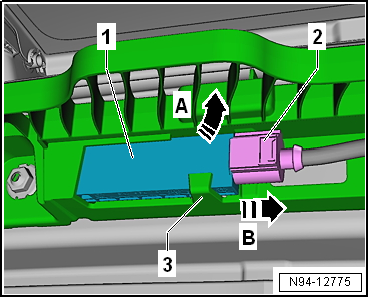

–  Lift areal -1- slightly in direction of arrow -A-.
–  Pull aerial -1- out of mounting -3- in direction of arrow -B-.
–  Disconnect electrical connector -2-.
Installing
Installation is carried out in the reverse sequence.
