Volkswagen Golf Service & Repair Manual: Removing and installing rear body acceleration sender -G343-

Volkswagen Golf Service & Repair Manual / Running gear, axles, steering / Self- levelling air spring system / Electronically controlled damping system / Removing and installing rear body acceleration sender -G343-

Special tools and workshop equipment required

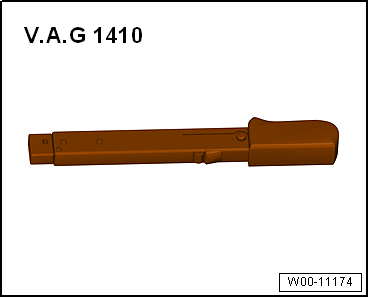

Torque wrench -V.A.G 1410-

Removing

–	Remove left luggage compartment side trim → General body repairs, interior; Rep. gr.70.

Removing and installing rear body acceleration sender -G343-

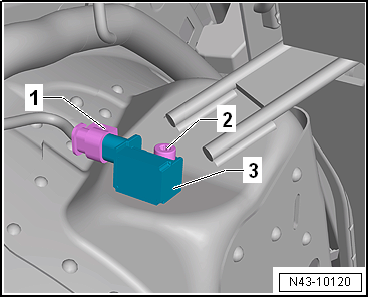

–	Release electrical connector -1- and pull off.

–	Unscrew bolt -2-, and remove rear body acceleration sender -G343--3-.

Installing

Install in reverse order of removal, observing the following:

Removing and installing rear body acceleration sender -G343-

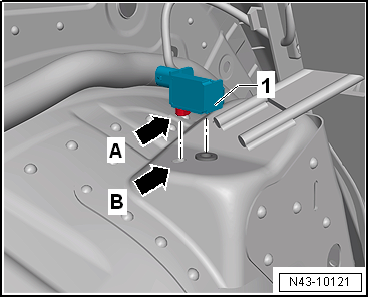

–	Insert rear body acceleration sender -G343--1- so that lug -arrow A- engages into hole -arrow B-.

–	Perform basic setting of wheel damper electronics → Vehicle diagnostic tester.

Specified torques

Removing and installing rear body acceleration sender -G343-

Component	Specified torque
Rear body acceleration sender -G343- to body	8 Nm
