Volkswagen Golf Service & Repair Manual: Removing and installing rear 3-point seat belt, 2-door model, without belt tensioner

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Pasanger protection / Seat belts / Removing and installing rear 3-point seat belt, 2-door model, without belt tensioner

Removing
–  Remove rear shelf support → Chapter.
–  Remove outer rear seat belt guide anchor → Chapter.

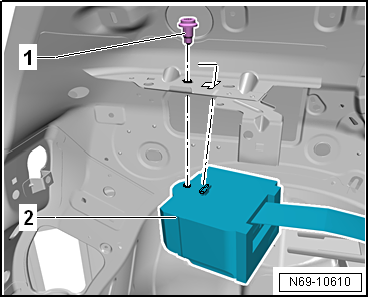

–  Remove bolt -1-.
–  Remove belt inertia reel -2- from mounting.
Installing
Install in reverse order, but note the following:
–  If parts of the belt system are removed because of an accident, the belt system bolts must be renewed.
Specified torques
  → Chapter „Assembly overview - three-point seat belt, 2-door model, without belt tensioner“
