Volkswagen Golf Service & Repair Manual: Removing and installing radiator fan -V7

Risk of hand injury caused by the radiator fan starting automatically.Do not grasp into the radiator fan when disconnecting the connector.
Removing
  Note
Reinstall all cable ties in the same locations when installing.
–  Remove radiator cowl → Chapter.

–  Separate electrical connectors.

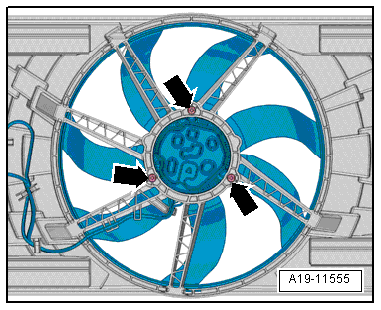

–  Unscrew bolts -arrows- and remove radiator fan -V7-.
Installing
Installation is carried out in the reverse order; note the following:
–  Install radiator cowl → Chapter.
Specified torques
→ Chapter „Assembly overview - radiator cowl and radiator fan“
