Volkswagen Golf Service & Repair Manual: Removing and installing plenum chamber bulkhead

Special tools and workshop equipment required

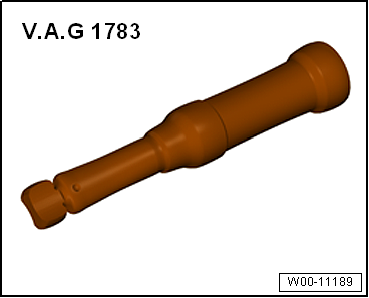

Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-

Removing and installing plenum chamber bulkhead

Removing
–  Removing plenum chamber cover → Chapter.
–  Unscrew hexagon nuts -2- and remove plenum chamber bulkhead -1-.
Installing
Install in the reverse order of removal observing the following:
Specified torques
Hexagon nut → Item
Assembly overview - plenum chamber cover
1 -  Plenum chamber cover q   Right side q   Removing and installing → Chapter 2 -  Plenu ...

Removing and installing plenum chamber cover
Removing   Note The removal and installation procedures for the plenum chamber covers may have to be modified slightly depending on model variants. ...
