Volkswagen Golf Service & Repair Manual: Removing and installing mirror trim

Special tools and workshop equipment required



Torque wrench -V.A.G 1783
Torque wrench -V.A.G 1783

  Note
Removal and installation are described only for the left mirror trim. The right side is similar.

Removing and installing mirror trim

Removing
–  Remove mirror glass → Chapter.
–  Remove mirror cover → Chapter.

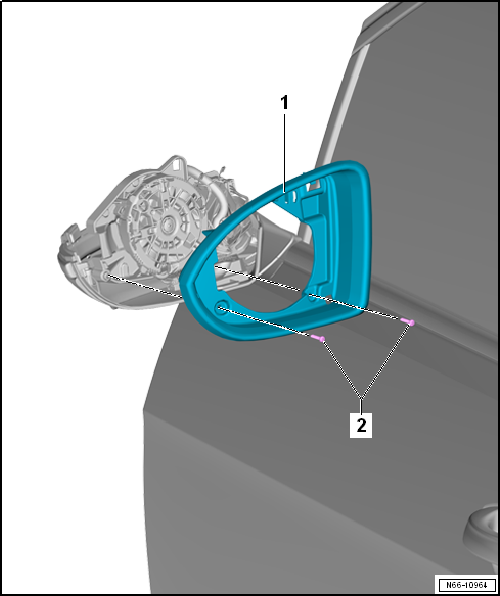

–  Remove bolts -2-.
–  Release mirror frame -1- from catches.
Installing
Install in the reverse order of removal observing the following:
–  Then check function.
Specified torques
  Bolts → Item
Removing and installing mirror cover
    Note Removal and installation are described only for the left mirror cover. The right side is similar. Removing –&nbs ...
