Volkswagen Golf Service & Repair Manual: Removing and installing massage control unit -J740-

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Seat frames / Front seats / Removing and installing massage control unit -J740-

Special tools and workshop equipment required



Removal wedge -3409
Removal wedge -3409

Removing
–  If fitted, remove storage compartment → Chapter.

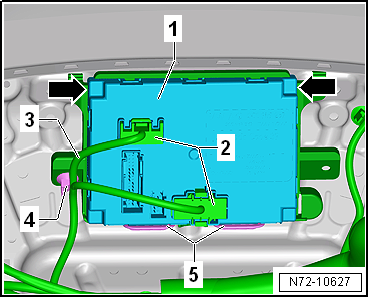

–  Unclip wiring harness -3- from retainer.
–  To do this, lever off cable retainer -4- using removal wedge -3409-.
–  Release connectors -2- and pull them off.
–  Release massage control unit -J740--1- from retaining tabs -5-.
–  Pull massage control unit -J740--1- out of mountings -arrows-.
Installing
Install in reverse order, but note the following:
–  Renew any damaged cable ties and clips.
–  Route wires in their original positions.
