Volkswagen Golf Service & Repair Manual: Removing and installing manufacturer emblem

  Note

The emblem cannot be removed without damage.

Removing and installing manufacturer emblem

Removing

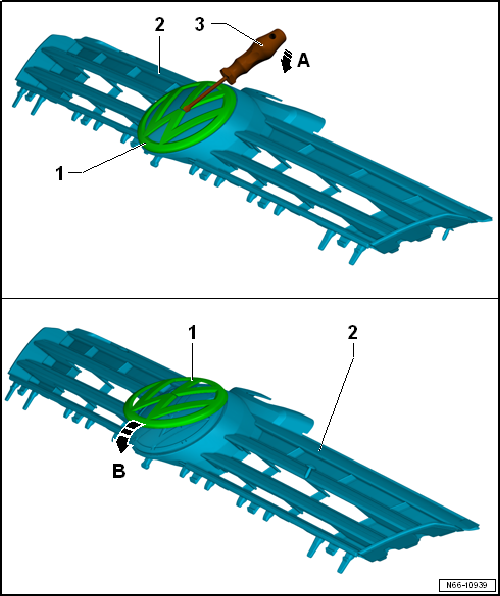

–  Use a screwdriver -3- to carefully lever manufacturer emblem -1- out of radiator grille -2- in -direction of arrow A-.
Installing
–  Press manufacturer emblem -1- on radiator grille -2- until it engages audibly.
Dimensions – lettering on wing, “R”
1 -  Emblem 2 -  Height dimension 5.0 ± 1 mm, from upper edge of lettering to edge of wing 3 -  Horizontal dim ...

Removing and installing model designation on radiator grille
  Note The description applies for all emblems. Here the “GTI” emblem is shown as an example.     Removin ...
