Removing
–  Swing interior mirror downwards by approx. 25° as far as stop.

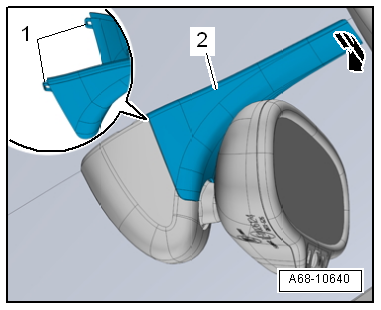

–  Pull rear cover -2- downwards -arrow- while simultaneously releasing catches -1- using a screwdriver.
–  Detach cover from mirror base and remove it.


Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

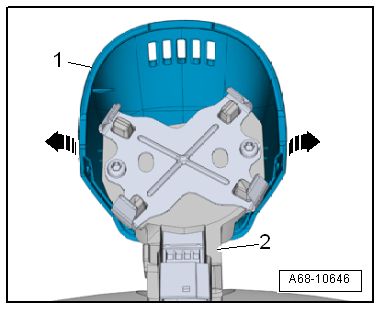

–  Carefully release locking lugs -arrows- and pull front cover -1- downwards out of guides on mirror base -2-.


Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

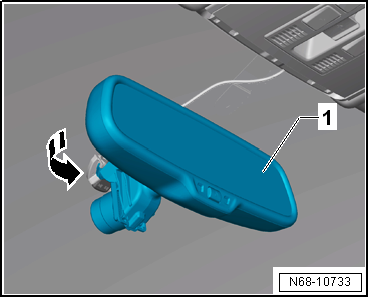

–  Turn interior mirror -1- anti-clockwise by 20° -arrow- and remove it downwards.
–  If fitted, disconnect connector from interior mirror.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.


Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-

Removing and installing manually operated anti-dazzle interior mirror, without rain and light sensor -G397- and front camera for driver assist systems -R242-
Removing –  Turn interior mirror -2- anti-clockwise -arrow- by 90° (1/4 turn). –  Remove interior mirror -2- from glued-on reta ...

Removing and installing automatic anti-dazzle interior mirror, with rain and light sensor -G397- and front camera for driver assist systems -R242-
Removing –  Unclip front cover -1- from front interior light -W1- and pull it downwards by approx. 10 mm -arrows A-. ...
