Volkswagen Golf Service & Repair Manual: Removing and installing manually operated anti-dazzle interior mirror, without rain and light sensor -G397- and front camera for driver assist systems -R242-

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Interion equipment / Interior mirror / Removing and installing manually operated anti-dazzle interior mirror, without rain and light sensor -G397- and front camera for driver assist systems -R242-

Removing

Removing and installing manually operated anti-dazzle interior mirror, without rain and light sensor -G397- and front camera for driver assist systems -R242-

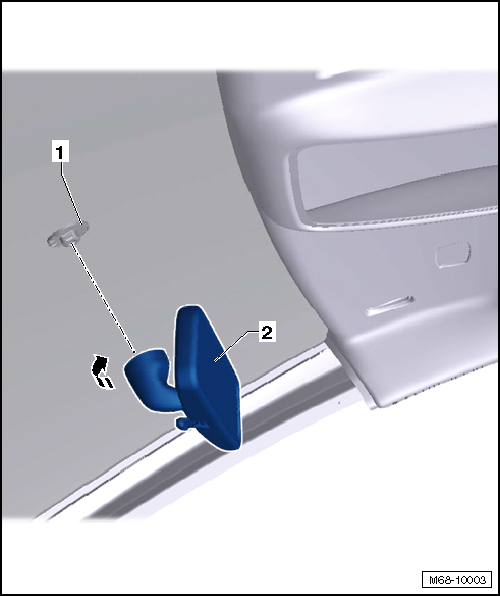

–  Turn interior mirror -2- anti-clockwise -arrow- by 90° (1/4 turn).
–  Remove interior mirror -2- from glued-on retaining plate -1-.

Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.

Assembly overview - automatic anti-dazzle interior mirror, with rain and light sensor -G397- and front camera for driver assist systems -R242-
1 -  Front cover For mirror base 2 -  Retaining plate For interior mirror Bonded to windscreen 3 -  Rear cov ...

Removing and installing manually operated or automatic anti-dazzle interior mirror, with rain and light sensor -G397- and without front camera for driver assist systems -R242-
Removing –  Swing interior mirror downwards by approx. 25° as far as stop. –  Pull rear cover -2- d ...
