Volkswagen Golf Service & Repair Manual: Removing and installing lumbar support adjustment switch -E176-/-E177-

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Seat frames / Front seats / Removing and installing lumbar support adjustment switch -E176-/-E177-

  Note
Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate.

Removing

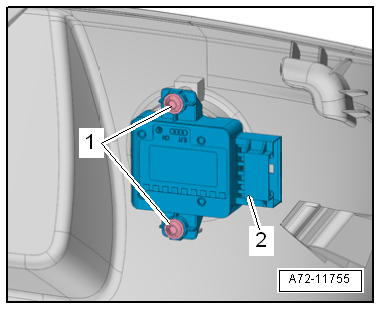

–  Remove seat trim on sill side → Chapter.
–  Remove bolts -1-.
–  Remove switch -2-.
Installing
Installation is carried out in reverse order.
Specified torques


Removing and installing lumbar support adjustment switch -E176-/-E177-

Component Specified torque
Bolt -1- 1 Nm
