Volkswagen Golf Service & Repair Manual: Removing and installing luggage compartment aerial for entry and start system -R137-

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Entry and start authorisation system / Removing and installing luggage compartment aerial for entry and start system -R137-

Special tools and workshop equipment required

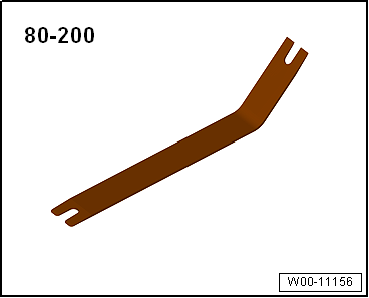

Release lever -80 - 200-
Removing
–  Remove rear seat bench → General body repairs, interior; Rep. gr.72.
–  Fold back floor covering.


Removing and installing luggage compartment aerial for entry and start system -R137-

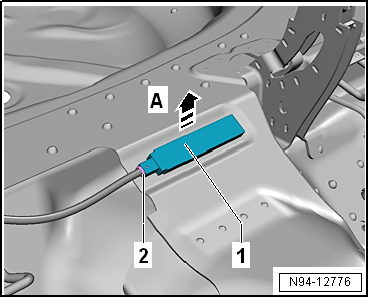

–  Lever aerial -1- out of vehicle body in direction of arrow -A- using removal lever -80 - 200-.
–  Disconnect electrical connector -2-.
Installing
Installation is carried out in the reverse sequence.
