Volkswagen Golf Service & Repair Manual: Removing and installing locking mechanism for rear seat backrest

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Seat frames / Rear seats / Removing and installing locking mechanism for rear seat backrest

Special tools and workshop equipment required



Torque wrench -V.A.G 1331
Torque wrench -V.A.G 1331

Removing
–  Remove trim for locking mechanism → Chapter.
–  Release backrest cover only in area of locking mechanism → Chapter.
Variant
–  Remove Bowden cable on backrest end from release mechanism -1- → Anchor.
Continued for all vehicles

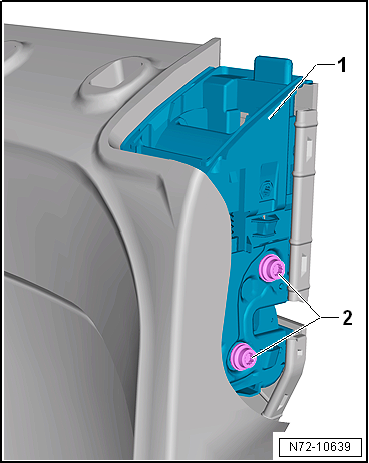

–  Remove bolts -2-.
–  Remove locking mechanism -1- from backrest frame.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - locking mechanism“


Removing and installing locking mechanism for rear seat backrest
