Volkswagen Golf Service & Repair Manual: Removing and installing -J245-sliding sunroof adjustment control unit

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Sliding roof / Sliding sunroof / Removing and installing -J245-sliding sunroof adjustment control unit

Special tools and workshop equipment required

Removing

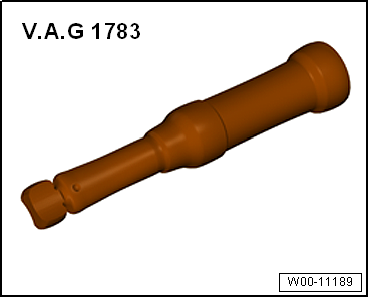

Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-

Removing and installing -J245-sliding sunroof adjustment control unit

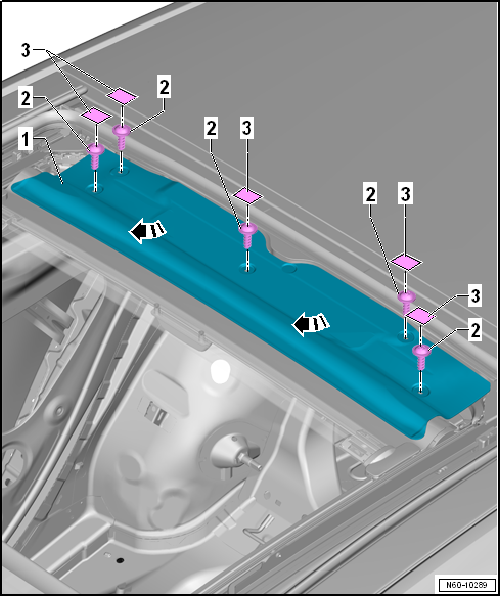

–  Remove glass panel → Chapter.
–  If drive is defective, remove glass panel → Chapter.
–  Pull self-adhesive insulation -3- off.
–  Remove bolts -2-.
–  Pull out cover upwards at an angle -arrows-.

  WARNING
Remove or install drive for panorama tilting sunroof glass panel only when sunroof is closed ("0" position ).
The requirements for removing and installing drive are: Engine not running and ignition off, key not in ignition and door open.

Removing and installing -J245-sliding sunroof adjustment control unit

–  Switch engine and ignition off, remove key and open door.
This situation must be maintained until drive has been installed.

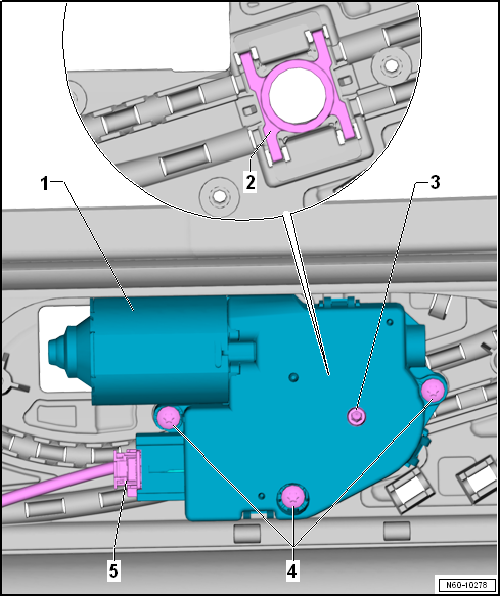

–  Remove bolts -4- and pull off drive for panorama tilting roof -1-.
–  Detach drive connector -5-.

Installing

  Note
The bolts for the drive are microencapsulated and must always be renewed.

Removing and installing -J245-sliding sunroof adjustment control unit

–  Plug in connector -5- at drive -1-.
–  Check that the clips -2- are correctly seated.
–  Attach drive -1- and tighten bolts -4-.
–
–  After installation, the key can be inserted in ignition and starter switch again.
–  Then test for proper function.

Removing and installing -J245-sliding sunroof adjustment control unit

–  Push cover onto assembly frame.
–  Tighten bolts -2-.
–  Attach self-adhesive insulation -3-.
Specified torques
  Sliding sunroof adjustment control unit -J245- → Chapter
  Cover → Chapter
