Removing
–  Fold down lid for through-loading aperture.

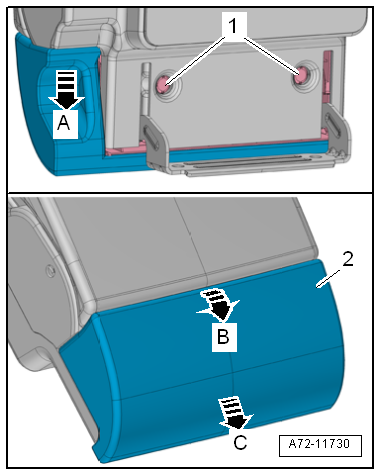

–  Release locking lugs -1- using a screwdriver and at the same time push down intermediate padding -2- as far as stop -arrow A-.
–  Slightly lift up intermediate padding -arrow B- on top and at the same time detach it at bottom from lid for through-loading aperture -arrow C-.
Installing
Installation is carried out in reverse order.
